20m cell on wheels COWS custmized height max load 600kg
| उत्पत्ति के प्लेस | चीन |
|---|---|
| ब्रांड नाम | QJ |
| मॉडल संख्या | QJ20 |
| न्यूनतम आदेश मात्रा | 1 सेट |
| मूल्य | USD20000 |
| पैकेजिंग विवरण | थोक |
| प्रसव के समय | 30 दिन |
| भुगतान शर्तें | एल/सी, टी/टी |
| आपूर्ति की क्षमता | 5 सेट/माह |
उत्पाद विवरण
| सामग्री | इस्पात | टॉवर प्रकार | गोल खंभा |
|---|---|---|---|
| मीनार | दूरबीन का | चलाया हुआ | हाइड्रोलिक |
| ट्रेलर | वैकल्पिक | आश्रय | हाँ |
| रंग | स्वनिर्धारित | ||
| प्रमुखता देना | 20m cell on wheels with 600kg load,custom height cell on wheels,mobile cell tower with max load |
||
उत्पाद विवरण
cell on wheels COWS custmized height max load 600kg

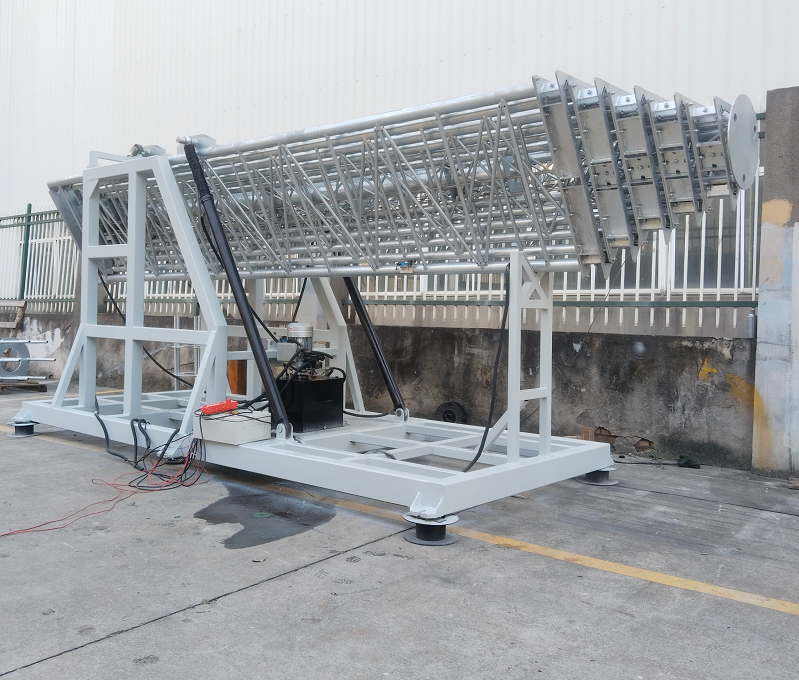

Wuxi Chinge is a professional manufacturer of telescopic telecom towers--both pole type and lattice type
height from 6m to 35m
payload up to 800kg
tower type:

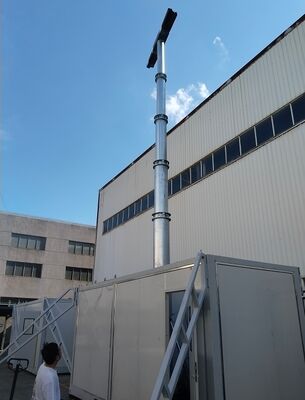

pole type

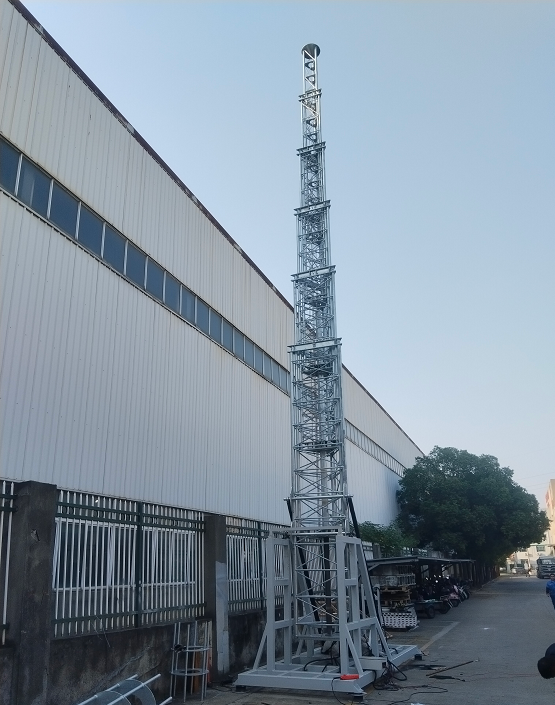

lattice type

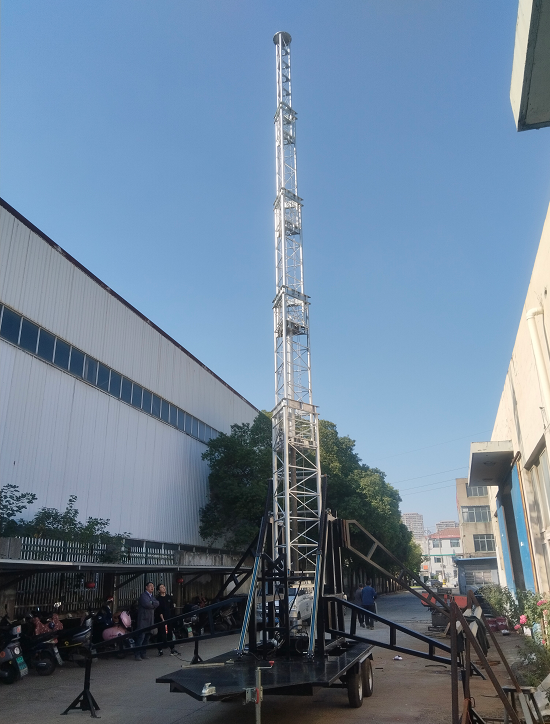

trailer :
Trailer---tow head optional for light truck/ pick car/tractor
Chassis Length: 8.0m Width: 2.20m Height: 0.6m
Max. gross weight: 5500 kg.
Axles: 2
weight division: 500 kg. per m2
Tires: all terrain 8 plus 1 spare
Brakes: compressed air
Lighting: 12V LED lighting
Electric plug: civil power inlet
electric brake
Towing arm: flat(customized)
Finish: painted black or customized color
Landing gear: 4 pcs
stabilizer 4 pcs
Tool box
Foot steps

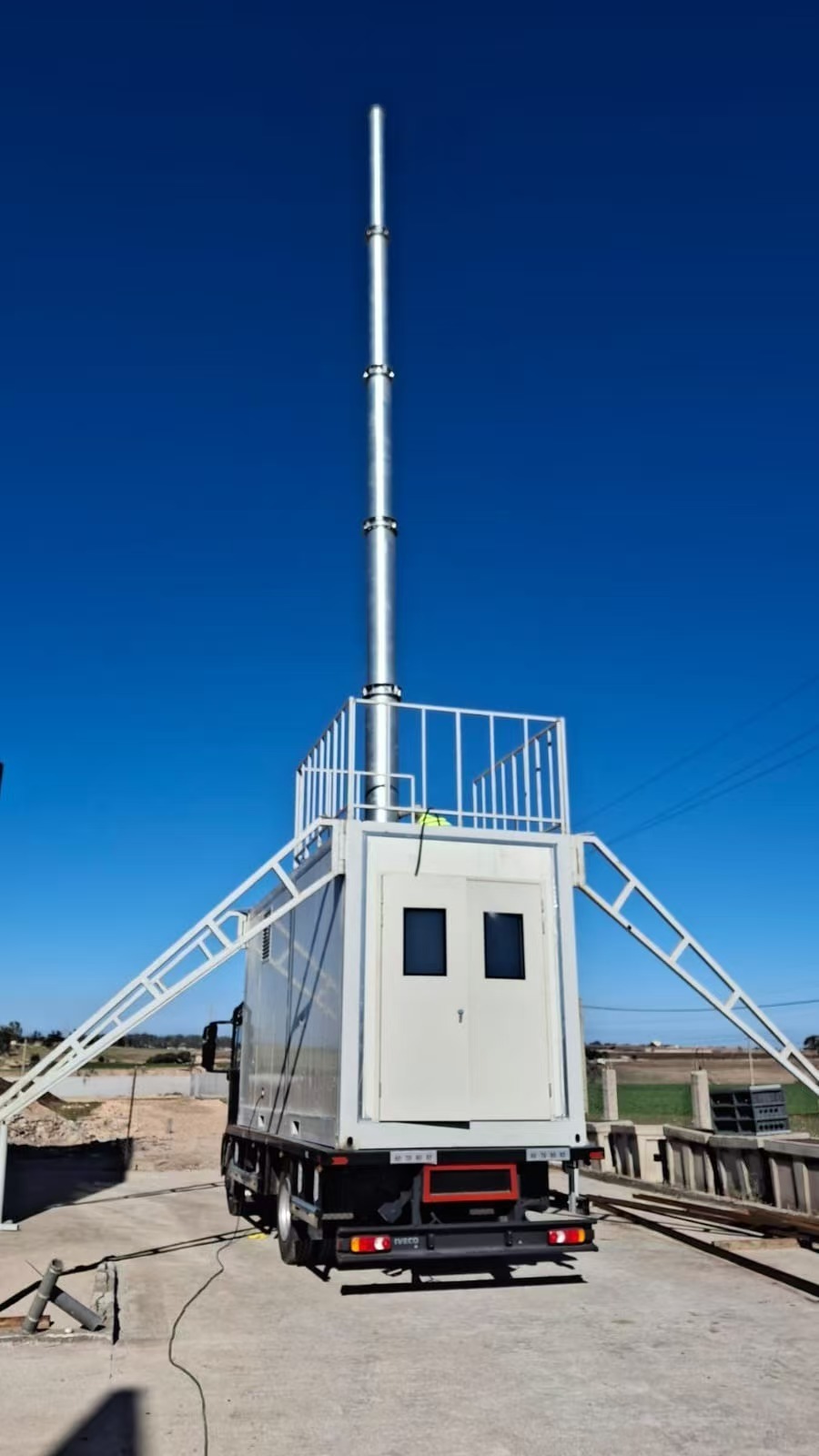

shelter
configurations:
Electric system
Cabinets: 1000x600mm
Input: 5pin 63A male (incl. 32A-63A adaptor)
PDB: 6 breaker incl. main switch and overvoltage protection
Output: female 3pin 16A, 3 per cabinet
sound & light alarm during liting the tower, angle sensor to check the verticality, if the tower decline to certain degree, it will alarm
socket: international standard sockets
Light Wiring
Cooling: forced-air system
Earthing Cable management: Earthing bars and cable tray around ceiling
Electric components and accessories spect:
All sockets in shelter are Schneider series 56 industrial swithces
- AC haier brand 5HP inverter split type
- Main Distribution Board with change over switch
Include: breaker 63A 4P with voltage protection *1
4 pole CB 50A for rectifier *1
2 pole CB 16A for rectifier *1
2 pole CB 10A for rectifier *1
1 pole CB 10A for rectifier *1
1 pole CB 10A for rectifier *1
A busubar *1
100/5A amper meter with 100/5A current transformer *3units
Volt meter*1
Indication lamps with switch *1
Main fail relay *1
63A 4P AC1 ratws contactor *1
32A 1 P MCCB , equip with 40A/300mA earth leakage circuit breaker *1 unit
32A 3P stand by *2
Surher srrestor with 100A fuse *1
Box coated water and dust proof at IP55 grade
Anti-lighting management:
Copper rod at the top of the tower, body use 25m2 copper wire insulated.
Cable management:
accessories:
